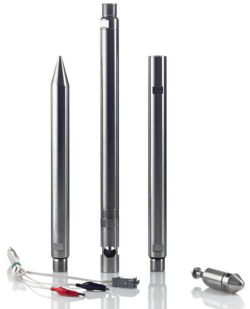

Memory gauge (pressure, temperature) – a pressure and temperature recorder with memory, providing accurate real-time measurements with the possibility of subsequent analysis.

Advantages:
— High accuracy
— Large memory capacity
— Delayed start mode
— Seamless data transfer to a PC
— Large device memory capacity
— Memory efficiency
— High-speed measurement capability
— 3-year calibration interval
— Explosion-proof design
— Operation in aggressive environments

Specifications:

Pressure measurement ranges: 25, 40, 60, 100 MPa
Permissible error of pressure measurement (over the temperature range): ± 0.15% (–20°C…+150°C)
Least significant digit of pressure measurement: 0.0001 MPa
Operating conditions: –40°C to +150°C
Permissible absolute error of temperature measurement with the built-in sensor: ± 0.2°C (–20°C…+50°C)
Least significant digit of temperature measurement: 0.001°C
Internal memory: number of measurements: at least 11,000,000 points
Continuous operation time: at least 1 year with a 16-second measurement period
Data reading interface: USB adapter
Verification interval: 3 years
Marking Explosion-proof/dust-proof: 1 Ex ia IIB T3 Gb X / IP68
